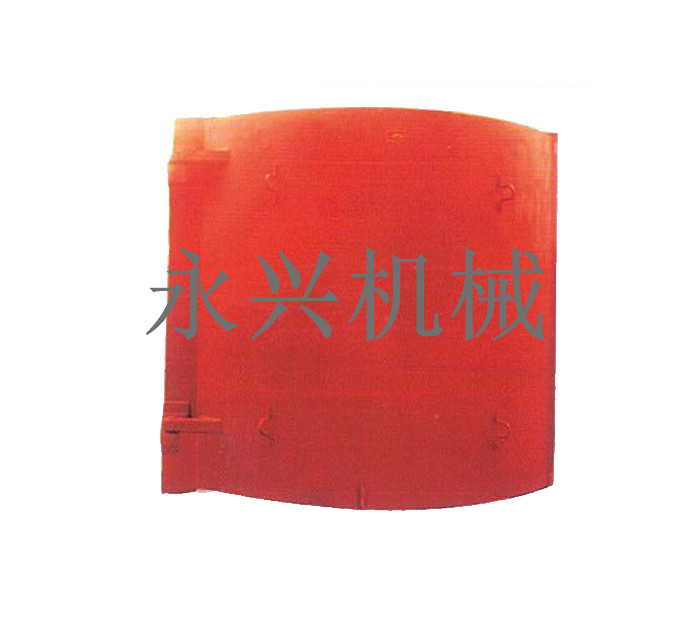

薄壳防水闸门
名称 | 型号及规格 | 图号 | 承压等级MPa | 门硐净空尺寸mm | 适用轨距mm | 重量 |
薄壳防水闸门 | ML1.7*2.3 | B87-371.11 | 1.6 | 1700*2320 | 600 | 1387 |
B87-371.21 | 2.5 | 1784 | ||||
B87-371.31 | 3.2 | 2148 | ||||
B87-371.41 | 4.0 | 2625 | ||||
B87-371.51 | 5.0 | 2844 | ||||
B87-371.61 | 6.0 | 3560 | ||||
B87-371.71 | 8.0 | 4350 | ||||
ML2.0*2.3 | B87-371.13 | 1.6 | 2000*2320 | 900 | 1565 | |
B87-371.23 | 2.5 | 2012 | ||||
B87-371.33 | 3.2 | 2412 | ||||
B87-371.43 | 4.0 | 2935 | ||||
B87-371.53 | 5.0 | 3185 | ||||
B87-371.63 | 6.0 | 3967 | ||||
B87-371.73 | 8.0 | 4882 |
